Casing Antec Gambar dan Featurenya

[Sandra]

Broo mau Post casing2 Antec ni....

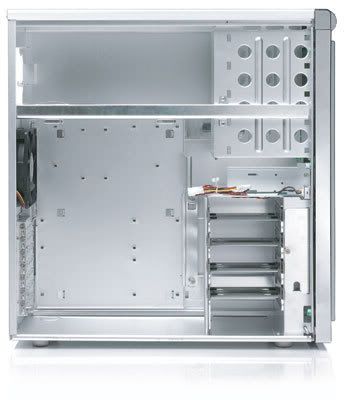

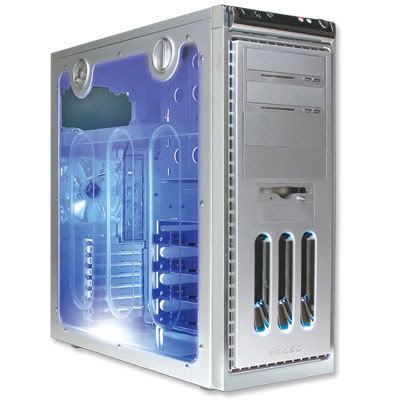

P160W



Features:

1.2mm anodized aluminum
delivers increased rigidity and a finish that won't lose its luster.
Swiveling front control panel
- Swivels up to 45 degrees
- Connectors: 2 x USB 2.0, 1 x IEEE
1394 (FireWire, i.Link)
and 2 x audio jacks.
- LED temperature display with
two built-in sensors
Windowed side panel
Removable motherboard tray
Accomodates any ATX12V
power supply
10 drive bays
- Color-coordinated CD-ROM & floppy drive covers
a. 4 external 5.25"
b. 2 external 3.5"
c. 4 internal 3.5"
- Rubber mounting grommets in
hard drive trays
Cooling capacity:
a: 1 x 120mm low speed fan
b: 1 x 120mm fan mount
Fan Specs:
-RPM: 1600
-CFM: 56.13
-dB(A): 28
Built-in washable air filter
Removable Side Panel
Fits Micro ATX (9.6" x 9.6") and
Standard ATX (12"x 9.6")
motherboards
Unit Dimensions:
- 20.3"(H) x 8.1"(W) x 19.7"(D)
- 51.56cm(H) x 20.57cm(W) x 50.04cm(D)
Package dimensions:
- 22.7" (H) x 11" (W) x 22.6" (D)
- 57.66cm (H) x 27.94cm (W) x 57.40cm (D)
Weight:
- Net:14.30lb / 6.49kg
- Gross: 18.00lb / 8.16kg

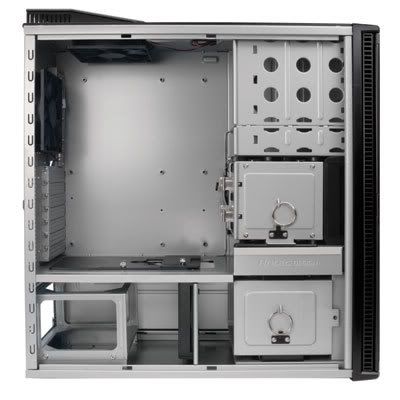

P180


Features:
Unique upper and lower chamber structure: The power supply resides in a separate chamber to isolate heat from the system and lower system noise
Innovative three-layer side panels and front door (aluminum, plastic, aluminum) dampen system noise, making this one of the quietest cases available
Cooling System:
- 1 rear (standard) 120mm TriCool Fan with 3-speed switch control
- 1 top (standard) 120mm TriCool Fan
- 1 lower chamber (standard) 120mm TriCool Fan
- 1 front (optional) 120mm fan
- 1 middle (optional) 120mm fan to cool graphics cards
- Upper drive cage can be used as a duct to provide fresh air to graphics cards
External fan control on the rear panel for the top and rear fans in the upper chamber
Maximum expandability with 11 Drive Bays
- External 4 x 5.25"; 1 x 3.5"
- Internal 6 x 3.5" for HDD
Motherboard: Fits micro and standard ATX
Double hinge front door designed to open up to 270º
Rubber grommeted ports on the rear for liquid-cooling tubes allow you to mount external liquid-cooling hardware
7 Expansion Slots
Front Ports
- 2 x USB 2.0
- 1 x IEEE 1394 (FireWire®, i.Link&#174
- Audio In and Out
Cable organizers behind motherboard tray minimize cable clutter
Material: 0.8mm cold rolled steel for durability through the majority of chassis, 1.0mm cold rolled steel around the 4x HDD area
To optimize performance of your P180 the choice of your power supply is crucial. Antec strongly recommends choosing from our Phantom, NeoPower or TruePower series
Silicone grommets in the hard drive cages absorb vibrations and reduce noise
Built in washable air-filter
Unit Dimensions:
- 21.3" (H) x 8.1" (W) x 19.9" (D)
- 54cm (H) x 20.5cm (W) x 50.7cm (D)
Package dimensions:
- 25" (H) x 12" (W) x 24" (D)
- 63.5cm (H) x 30.48cm (W) x 60.96cm (D)
Weight:
- Net:31.00lb / 14.00kg
- Gross: 36.00lb / 16.33kg

[Sandra]

P182



Features:
Attractive gun metal black finish
Dual chambers structure: The power supply (not included) is located in the lower chamber to isolate heat from the system and lower system noise
Special three-layer side panels and front door (aluminum, plastic, aluminum) dampen system generated noise, making this one of the quietest cases available
0.8mm cold rolled steel for durability used through the majority of the chassis, 1.0mm cold rolled steel around the 4x HDD area
11 Drive Bays:
- External 4 x 5.25”; 1 x 3.5”
- Internal 6 x 3.5” for HDD
7 Expansion Slots
Cooling System:
- 1 rear 120mm TriCool™ Fan (standard)
- 1 top 120mm TriCool™ fan (standard)
- 1 lower chamber 120mm TriCool™ Fan (standard)
- 1 front 120mm fan (optional)
- 1 middle 120mm fan (optional) to cool the VGA
External fan control on the rear panel for the top and rear fans in the upper chamber
Motherboard: Up to Standard ATX (12” x 9.6”)
Double hinge door designed to open up to 270º
Rubber grommeted ports on the rear for liquid-cooling tubes allow you to mount external liquid-cooling hardware
Front-mounted ports provide convenient connections:
- 2 x USB 2.0
- 1x IEEE 1394 (FireWire®, i.Link®
- Audio In/Out (HDA & AC’97)
Cable organizers behind motherboard tray minimize cable clutter
Dimensions:
- 21.3" (H) x 8.1" (W) x 19.9" (D)
- 52cm (H) x 21cm (W) x 51cm (D)
Net Weight:
- 30.9lbs
- 14kg

P182 SE



Features:
High quality stainless steel exterior with mirror finish
Dual chambers structure: The power supply (not included) is located in the lower chamber to isolate heat from the system and lower system noise
Special three-layer side panel and front door (stainless steel, plastic, aluminum) dampens system generated noise, making this one of the quietest cases available
0.8mm cold rolled steel for durability through the majority of chassis, 1.0mm cold rolled steel around the 4x HDD area
Flexible snake light (installed), lights your way while working inside the case
Exclusive black interior
11 Drive Bays:- External 4 x 5.25"; 1 x 3.5"
- Internal 6 x 3.5" for HDD

7 Expansion Slots
Cooling System:
- 1 rear 120mm TriCool fan (standard)
- 1 top 120mm TriCool fan (standard)
- 1 lower chamber 120mm TriCool™ fan (standard)
- 1 front 120mm fan (optional)
- 1 middle 120mm fan (optional) to cool the VGA
External fan control on the rear panel (for the 2 rear fans in the upper chamber)
Motherboard: Up to Standard ATX (12" x 9.6")
Double hinge door designed to open up to 270º
Rubber grommeted ports on the rear for liquid-cooling tubes allow you to mount external liquid-cooling hardware
Front-mounted ports provide convenient connections:
- 2 x USB 2.0
- 1x IEEE 1394 (FireWire®, i.Link®
- Audio In/Out (HDA & AC’ 97)

Cable organizer behind motherboard tray minimizes cable clutter
Dimensions:
- 21.3" (H) x 8.1" (W) x 19.9" (D)
- 52cm (H) x 21cm (W) x 51cm (D)
Net Weight:
- 31lbs
- 14kg

[Sandra]

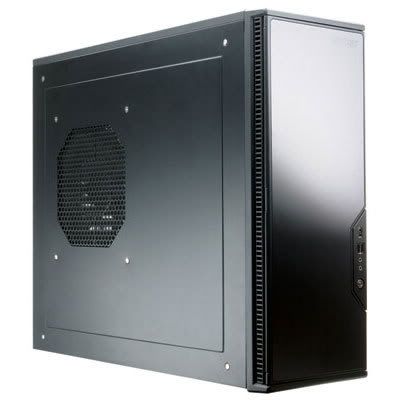

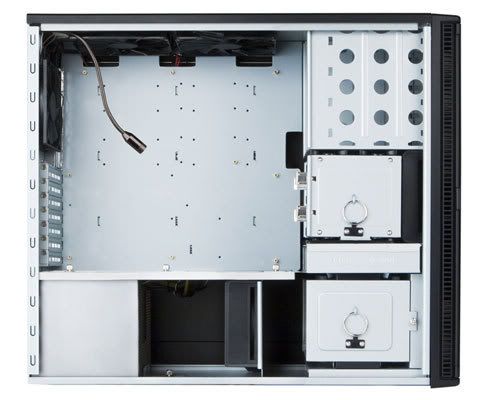

P190 +1200



Features:
Dual chambers structure. The power supplies reside in a separate chamber to isolate heat from the system and lower system noise
Dual-layer sound-deadening panels for Quiet Computing
Flexible snake light (installed), lights your way while working inside the case
Cable organizer behind motherboard tray minimizes cable clutter
Fits up to ExtendedATX (12" x 13") motherboards to fit your dual processor board, or any other board you could possibly have
Rubber grommeted ports on the rear for liquid-cooling tubes allow you to easily mount external liquid-cooling hardware
Neo-Link 1200 Watt dual power supply system:
(More info)
One 650 Watt Neo Power is responsible for powering the motherboard and add-in cards, while another 550 Watt, handles your drives and other peripherals
Advanced cooling system - Even larger fans than previous designs, move more air and turn slower for even quieter operation
- 2 top 140mm TriCool fan (standard)
- 1 rear 120mm TriCool Fan (standard)
- 1 lower chamber 120mm TriCool Fan (standard)
- 1 side 200mm Big Boy fan with air filter (standard)

External fan control on the rear panel (for the 2 top fans and 1 rear fan in the upper chamber)
Front-mounted ports provide convenient connections
- 2 x USB 2.0
- 1 x IEEE 1394 (FireWire® i.Link®
- Audio In/Out (AC' 97 & HDA)

Dimensions:
- 20.28" (H) x 8.07" (W) x 23.35" (D)
- 51.5cm (H) x 20.5cm (W) x 59.3cm (D)
Net weight:
- 43.2lbs / 19.6kg

[Sandra]

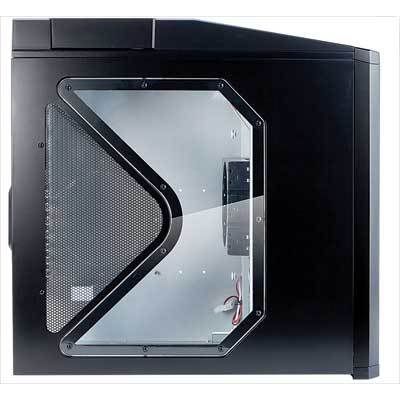

GAMER CASES NINE HUNDRED



Features:
Unique Top mounted 200mm "Big Boy" TriCool exhaust fan to cool the hottest system
Perforated front bezel for maximum air intake
Two front loaded HDD cages for up to 6 hard disk drives
The HDD cages act as air ducts to take air in more efficiently. Optional middle 120mm fan bracket to cool the hottest graphic cards or CPU
Two 120mm TriCool blue LED front fans to cool hard disk drives
Window side panel comes with an optional 120mm fan mount for maximum VGA cooling
Top tray for your MP3 player, digital camera, etc.
Power supply mounts at the bottom of the case (power supply not included)
Advanced cooling system:
• 1 top 200mm TriCool fan with 3-speed switch control
• 1 rear 120mm TriCool fan with 3-speed switch control
• 2 front 120mm special black TriCool blue LED fans with 3-speed switch control to cool HDDs
• 1 side (optional) 120mm fan to cool graphic cards
• 1 middle (optional) 120mm fan to cool CPU or graphic cards

9 Drive Bays
• External 3 x 5.25"; Internal 6 x 3.5" for HDD, or
• External 6 x 5.25"; Internal 3x 3.5" for HDD, or
• External 9 x 5.25"
Motherboard: Fits micro and standard ATX
7 Expansion Slots
Top mounted I/O ports
• Power and reset buttons
• 2 x USB 2.0
• 1 x IEEE 1394
• Audio In and Out
Unit dimensions:
• 19.4" (H) x 8.1" (W) x 18.4" (D)
• 49.3cm (H) x 20.6cm (W) x 46.7cm (D)
Package dimensions:
• 21.5" (H) x 10.6" (W) x 21.1" (D)
• 54.6cm (H) x 26.9cm (W) x 53.6cm (D)
Weight:
• Net: 18.5 lb / 8.4 kg
• Gross: 24.4 lb / 11 kg

[VileTooth]

Caya deh, kalo posting hal bisnis lebih baik di forum jual beli. Mereka biasanya lebih serius.

The best response yang kk bisa dapet disini paling "Wih keren ya, harganya berapa?" Or something like that.

Anyway, yang 900 harganya berapa? Kira2 kalo Februari ada stocknya nggak? Ambilnya dimana?

[d1kkyRNF]

@Viletooth
itu gak di jual kale tapi memberi info.
baca yg teliti dunk sebelum nulis.
kan jelas gak disebutin harga,stock,dan alamatnya/kontak.
kalau di sebutin harga,stock,dan alamatnya/kontak baru di pindah di forum jual.
@sandra
infonya dapetnya darimana kalau bisa website/no.alamat dan no.tlp distributor/toko.

[Sandra]

Caya deh, kalo posting hal bisnis lebih baik di forum jual beli. Mereka biasanya lebih serius.

The best response yang kk bisa dapet disini paling "Wih keren ya, harganya berapa?" Or something like that.

Anyway, yang 900 harganya berapa? Kira2 kalo Februari ada stocknya nggak? Ambilnya dimana?

Iya bRoo kita emang ga niat jualan tapi cuma mau kasih info he3x soalnya kita distributor broo jadi ga boleh jualan ke user. Cuma info aja sapa tau ntar ada Game Center yang pake casing antec he3x.Soalnya gua pikir ini forum general jadi boleh kasih info hardware computer. Sorry ya bro kalo menyalahi aturan.

Broo tau nine hundred darimana nih he3x??? Untuk nine hundred barangnya lagi OTW mungkin februari casing nine hundrednya ready soalnya juga lagi banyak yang cari he3x. Thx ya Broo.

[Sandra]

@sandra
infonya dapetnya darimana kalau bisa website/no.alamat dan no.tlp distributor/toko.

Service Center dan Distributor Untuk PSU ANTEC:

Ruko Bahan Bangunan Blok H1/21 (Sebelah Hotel Dusit)

Jln Mangga Dua Dalam 10730

Telp: 021-62201252

Dealer2 kami:

Jakarta

- PC Smart (M2M) = 021 62304519

- T Zone (M2M) = 021-62301274

- Dua Com (M2M) = 021-62301350

- Quantum Computer (M2M) = 021-6017020

- XS (M2M) = 021-62303855

- Tricom (Dusit) = 021-6254836

- Metro Com (Dusit) = 021-62302369

- Sigma (Dusit) = 021-6122530

- Data Kreasi System (Dusit) = 021-6297054

- Revolution (Harco Mangga Dua) = 021-6017466

- GadgetCiti. Com (Mall Ambasaddor) = 021-57939640

- Nicom Computer (Gajah Mada Mall) = 021-6341089

Jogjakarta

- Talenta Komputer = 0274-7862880

Untuk website Antec dapat dilihat di www.antec.com
selain casing kita juga ada Power Supply Broo.
Untuk Power Supply garansinya ada yang 3 tahun dan 5 tahun. Thx

[VileTooth]

Wih D1kky sekarang dah pulih..
Btw, sorry gw dah bikin 2 thread & puluhan post terdahulu yang "you know what"

Wih, gile aje warnet pake Antec, kecuali yang flat rate >5000 se jem sih gw percaya dah pengen pake casing begini. Mana yang ditawarin seri Performance One sama 900 doank lagi..
Tau dnk 900, kan sering liat2 catalog online terus drooling.

Jadi misalnya gw jadi beli 900nya, perlu telpon sekarang nggak dealer2 diatas? Ato nanti gw dateng aja sekitar awal februari gitu?

[d1kkyRNF]

kalau casing terbuat dari copper ada?
kalau casing terbuat dari copper bagus tapi harganya mahal.
kalau bentuk casingnya bagus wa nanti beli krn harga sudah sebanding ama kualitas dan seni.
ada gak toko dari surabaya.
kalau gak ada harus nambah ongkos sendiri hiks.
@Viletooth
Yo wes gpp kan namanya manusia pasti pernah melakukan kesalahan.
mending lu kesana aja kan bisa melihat dan tau harga yg udah di pasarkan.
tapi saran wa kalau mo beli casing yg di liat bagian2 sudut yg masih lancip/tajam dan ruang tiap komponen terlalu sempit jaraknya baik luar dan dalam waktu pemasangan bisa melukai lu mending gak usah di beli atau cari yg lain.
krn bisa merusak kompunen dan melukai lu.
udah tau kan maksud wa??

[Sandra]

kalau casing terbuat dari copper ada?
kalau casing terbuat dari copper bagus tapi harganya mahal.
kalau bentuk casingnya bagus wa nanti beli krn harga sudah sebanding ama kualitas dan seni.
ada gak toko dari surabaya.
kalau gak ada harus nambah ongkos sendiri hiks.
@Viletooth
Yo wes gpp kan namanya manusia pasti pernah melakukan kesalahan.
mending lu kesana aja kan bisa melihat dan tau harga yg udah di pasarkan.
tapi saran wa kalau mo beli casing yg di liat bagian2 sudut yg masih lancip/tajam dan ruang tiap komponen terlalu sempit jaraknya baik luar dan dalam waktu pemasangan bisa melukai lu mending gak usah di beli atau cari yg lain.
krn bisa merusak kompunen dan melukai lu.
udah tau kan maksud wa??

Toko dari surabaya ada coba aja contact di Cipta Mandiri Komputer (Hitec Mall Lt 1 C-12) No telp 031-5468462. Thx

[d1kkyRNF]

Oh ada di surabaya yah.
thx yah.
besok lsg ke tokonya biar lebih detail dan bentuknya.

[VileTooth]

Dari list2 yang berisi no telp dan alamat toko di Jakarta.. Yang ngejual 900nya juga yg mana? Ntar gw telpon dibilang cuman jual PSU kan malu.

Terus.. selaen Antec cc Sandra distributor Thermaltake juga ngk?

[Sandra]

Dari list2 yang berisi no telp dan alamat toko di Jakarta.. Yang ngejual 900nya juga yg mana? Ntar gw telpon dibilang cuman jual PSU kan malu.

Terus.. selaen Antec cc Sandra distributor Thermaltake juga ngk?

Broo gua distributor Antec aja kalo Thermaltake Distributornya Solitech , Semua toko di atas jual casing dan power supply antec Broo tapi nine hundrednya belum ready statusnya lagi On The Way (OTW) mungkin februari nanti. Thx Broo.

[bucah]

kalo mau langsung beli PSU ke distributor, minimal brp biji ?

tolong sms gue aja di 081-1374788. gue di sby dan rutin ke jkt.
